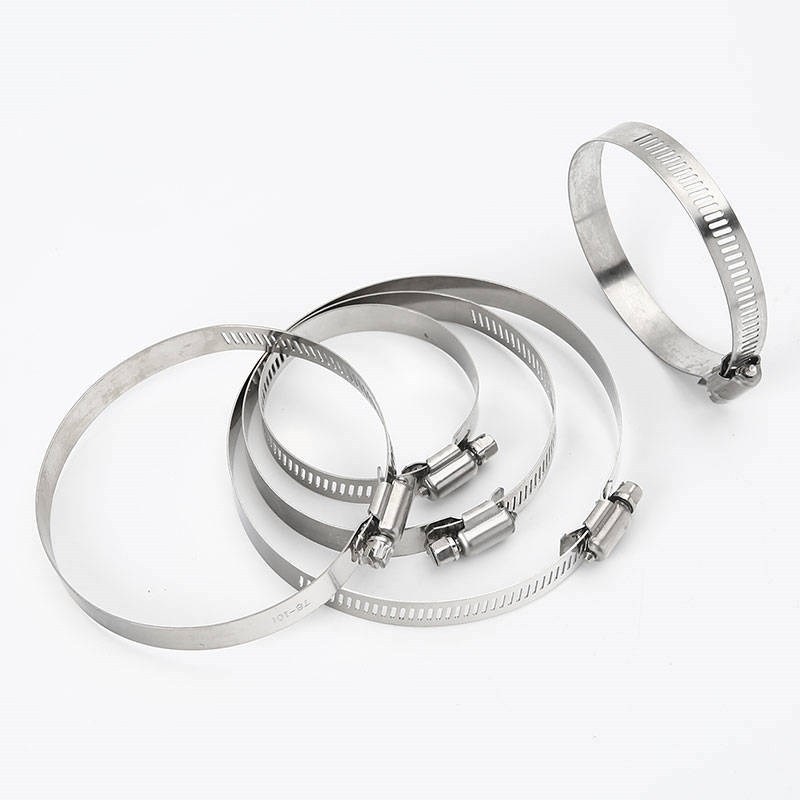

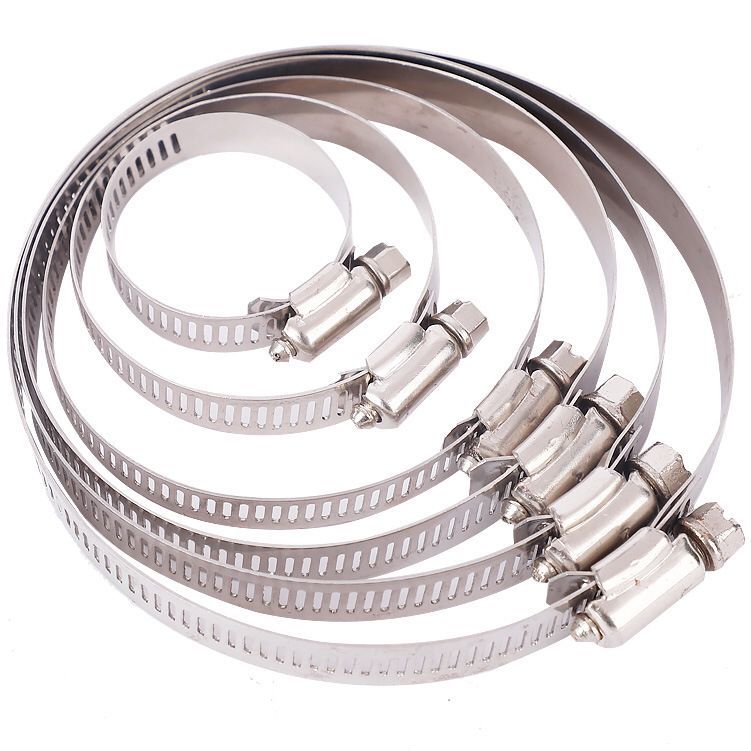

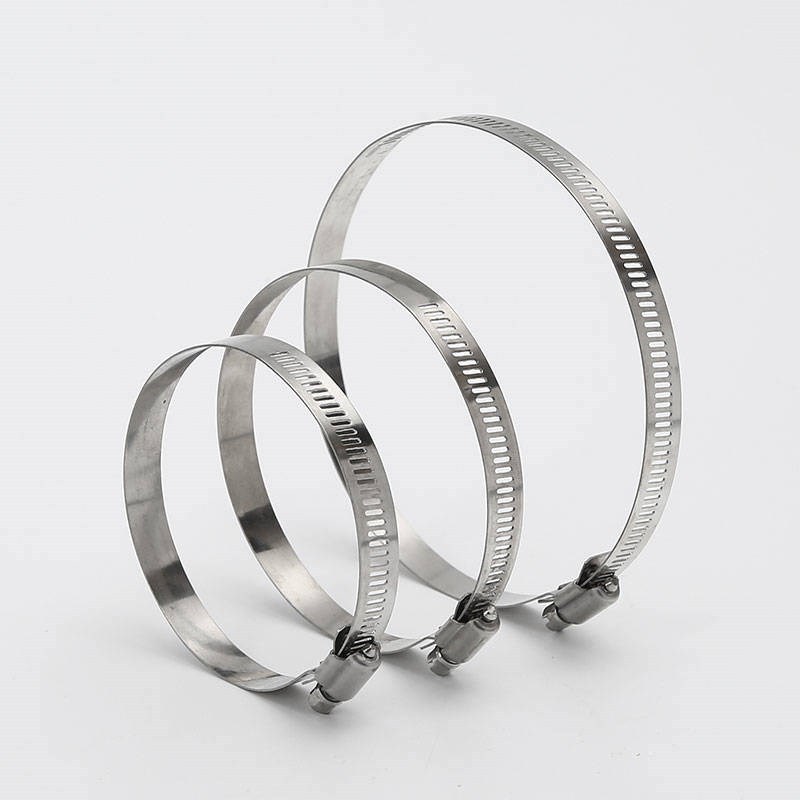

America Type Hose Clamp with 8mm and 12.7mm band
Standard: American Standard
Band width: 8mm /12.7mm
Material: Steel / Stainless Steel
-
America Type Hose Clamp with 8mm and 12.7mm band
Tianjin America Type Hose clamps are the traditional hose clamp design that is most popular in the Americas. America Hose clamps have a crimped or interlocked construction so clamps are not welded.
Available in 1/2″ (12.7 mm) bandwidth with 5/16″ (8 mm) screw head as well as a micro version in 5/16″ (8 mm) bandwidth and 1/4″ (6.3 mm) screw head.
American Type Hose Clamps offer strong and durable connections for various hose applications, ensuring reliability and easy installation.
Specifications for America Type Hose Clamp with 8mm band
Size
PCS/Bag
PCS/Carton
Carton Size
8-12
100
2500
38*27*19
10-16
100
2500
38*27*19
13-19
100
2500
38*27*24
16-25
100
2500
38*27*29
17-32
50
1000
38*27*19
19-38
50
1000
38*27*20
21-44
50
1000
38*27*24
27-51
50
1000
38*27*27
33-57
50
1000
38*27*34
39-64
50
1000
41*36*35
52-76
50
500
38*27*25
65-89
50
500
38*27*27
71-95
50
500
38*27*29
78-101
50
500
38*27*29
America Type Hose Clamp with 8mm band Mechanical Properties
Nm
FREE TORQUENm
BREAKING TORQUE8mm/W1
≤ 0.8Nm
≥ 2.5Nm
8mm/W2
≤ 0.6Nm
≥ 3.0Nm
8mm/W4
≤ 0.6Nm
≥ 3.0Nm
Specifications for America Type Hose Clamp with 12.7mm band
Size
PCS/BAG
PCS/CARTON
CARTON SIZE
10-20
100
1000
38*27*19
10-22
100
1000
38*21*21
11-25
100
1000
38*27*21
14-27
100
1000
38*27*24
17-32
100
1000
38*27*29
19-38
50
500
38*27*21
21-44
50
500
38*27*24
27-51
50
500
38*27*29
33-57
50
500
38*27*29
39-64
20
500
38*27*34
46-70
20
500
40*38*28
52-76
20
500
41*32*33
59-82
20
500
41*38*29
65-89
20
500
38*35*39
72-95
20
500
41*40*38
78-101
10
250
38*27*34
84-108
10
250
41*32*33
91-114
10
250
38*27*24
105-127
10
250
40*37*28
118-140
10
250
40*37*30
130-152
10
250
40*37*30
143-165
10
250
50*41*32
155-178
10
250
50*41*32
America Type Hose Clamp with 12.7mm band Mechanical Properties
Nm
FREE TORQUENm
BREAKING TORQUE12.7mm/W1
≤ 0.8Nm
≥ 5Nm
12.7mm/W2
≤ 0.6Nm
≥ 8Nm
12.7mm/W4
≤ 0.6Nm
≥ 8Nm
W1—Screw,Housing and Band are all Zinc Plated.
W2一Screw is Zinc Plated .Housing and Band are all Stainless Steel.
W4一Screw,Housing and Band are all Stainless Steel. -
