High Quanlity Germany Torro Hose Clamp witb 9mm and 12mm Band
Standard: Germany Standard
Band width: 9mm /12mm
Material: Steel / Stainless Steel
-
High Quanlity Germany Torro Hose Clamp witb 9mm and 12mm Band

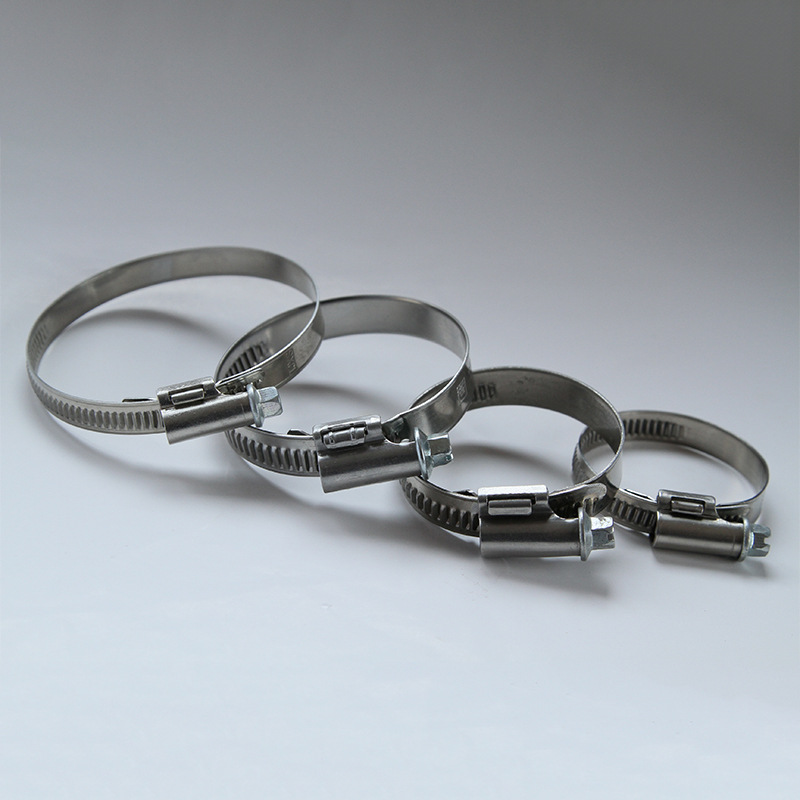

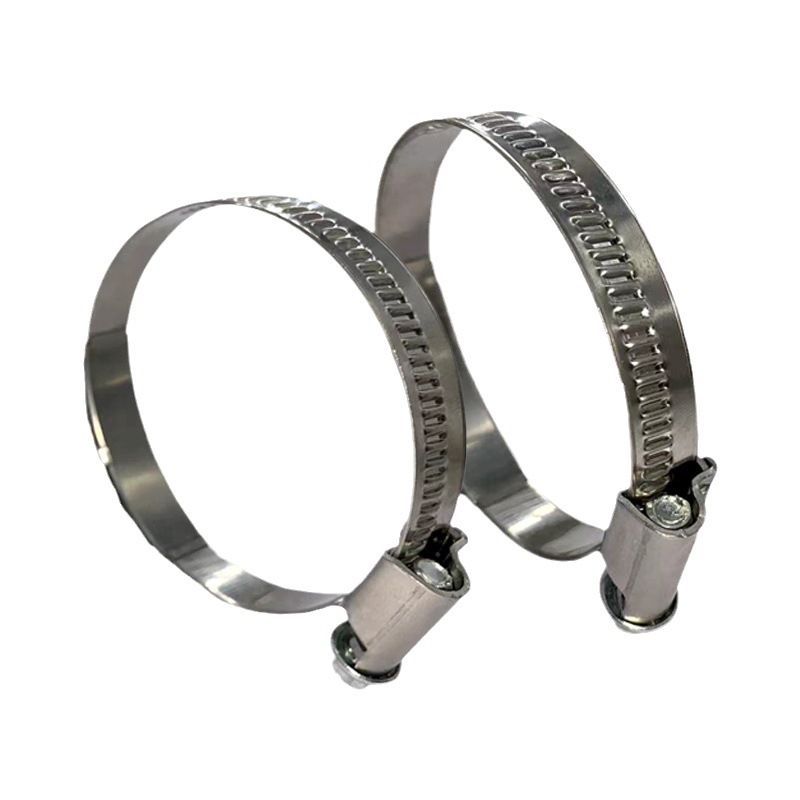

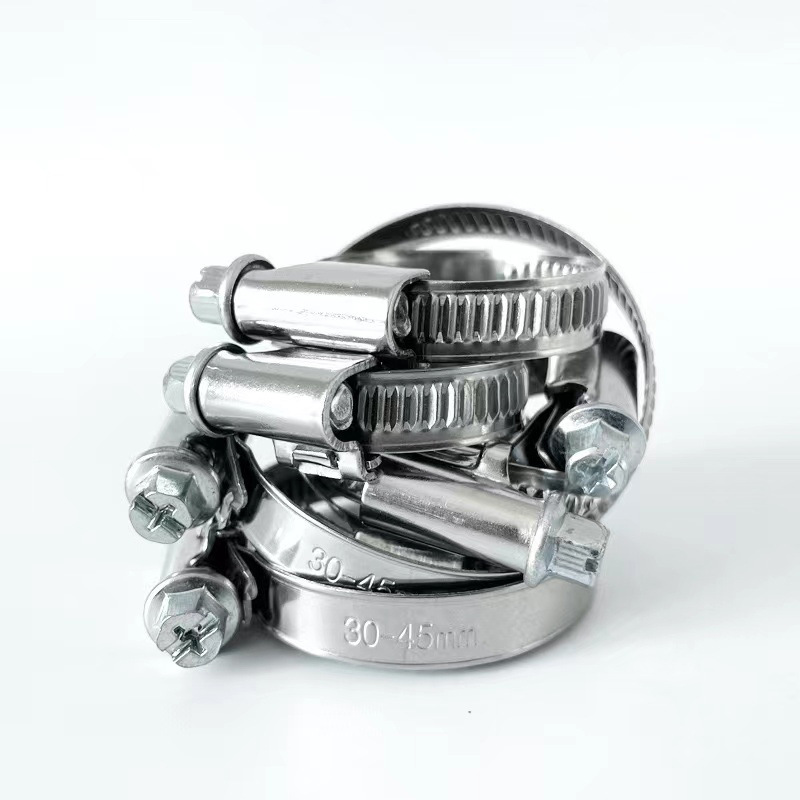

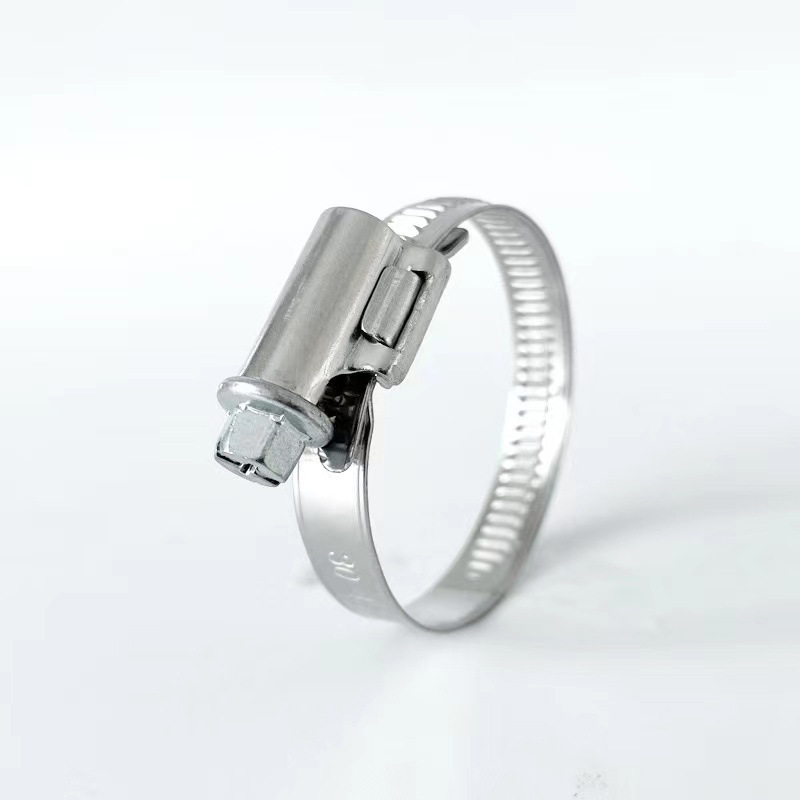

Germany Torro hose clamps feature an embossed design with smooth, rolled clamp edges that will not cut soft hoses. This makes these clamps ideal for silicone and other soft hoses.
Specifications for Germany Torro hose clamps with 9mm Band
Size
PCS/Bag
PCS/Carton
Carton Size
8-12
100
1000
32*27*14
10-16
100
1000
32*27*14
12-20
100
1000
38*27*14
16-27
100
1000
38*27*17
20-32
100
1000
38*27*21
25-40
100
500
38*27*29
32-50
50
500
38*27*21
40-60
50
500
38*27*29
50-70
50
500
38*27*34
60-80
50
500
41*32*32
70-90
50
500
40*37*30
80-100
10
250
38*27*24
90-110
10
250
38*27*29
100-120
10
250
38*27*29
110-130
10
250
38*27*34
120-140
10
250
41*32*32
130-150
10
250
40*37*30
140-160
10
250
40*37*30
Germany Torro hose clamps with 9mm Band Mechanical Properties
Nm
FREE TORQUENm
BREAKING TORQUE9mm/W1
≤ 0.6Nm
≥ 4.5Nm
9mm/W2
≤ 0.6Nm
≥ 6Nm
9mm/W4
≤ 0.6Nm
≥ 6Nm
9mm/W5
≤ 0.6Nm
≥ 6Nm
Specifications for Germany Torro hose clamps with 12mm Band
Size
PCS/Bag
PCS/Carton
Carton Size
16-27
100
1000
38*27*19
20-32
50
500
38*27*17
25-40
50
500
38*27*21
32-50
50
500
38*27*29
40-60
50
500
41*32*32
50-70
10
500
41*32*32
60-80
10
250
38*27*24
70-90
10
250
38*27*29
80-100
10
250
38*27*34
90-110
10
250
41*32*32
100-120
10
250
41*32*32
110-130
10
250
40*37*30
120-140
10
200
41*32*32
130-150
10
200
41*37*35
140-160
10
200
41*37*35
150-170
10
100
38*27*34
160-180
10
100
41*32*32
170-190
10
100
40*37*30
180-200
10
100
41*37*35
Germany Torro hose clamps with 12mm Band Mechanical Properties
Nm
FREE TORQUENm
BREAKING TORQUE12mm/W1
≤ 0.8Nm
≥ 5Nm
12mm/W2
≤ 0.8Nm
≥ 7Nm
12mm/W4
≤ 0.8Nm
≥ 7Nm
12mm/W5
≤ 0.8Nm
≥ 7Nm
W2-------Screw is Zinc Plated.Housing and Band are all Stainless Steel
W4-------Screw,Housing and Band are all Stainless Steel
-
