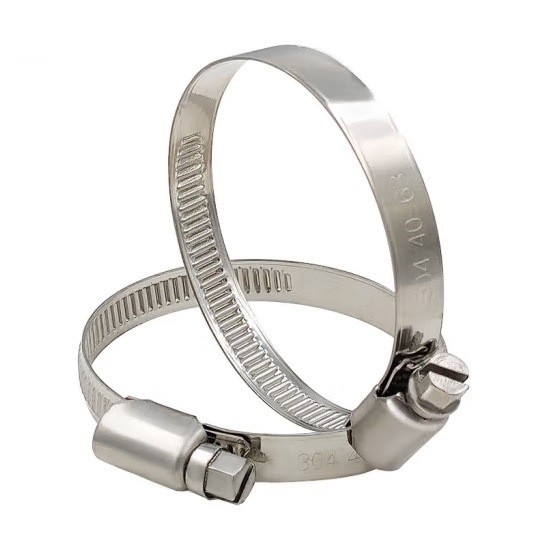

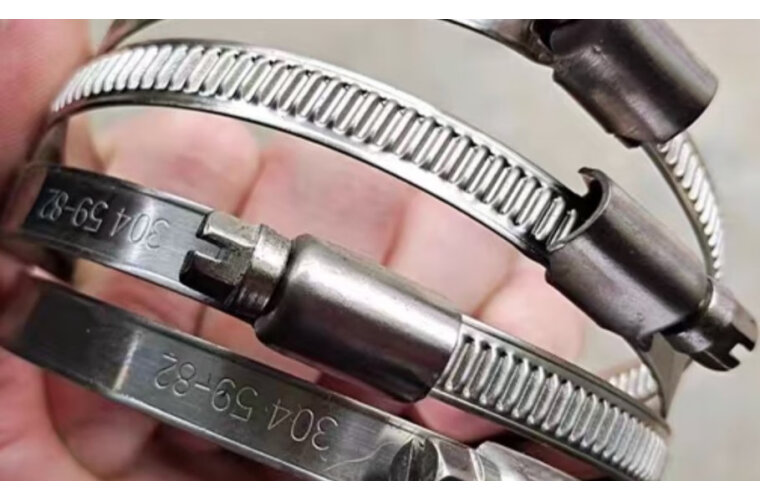

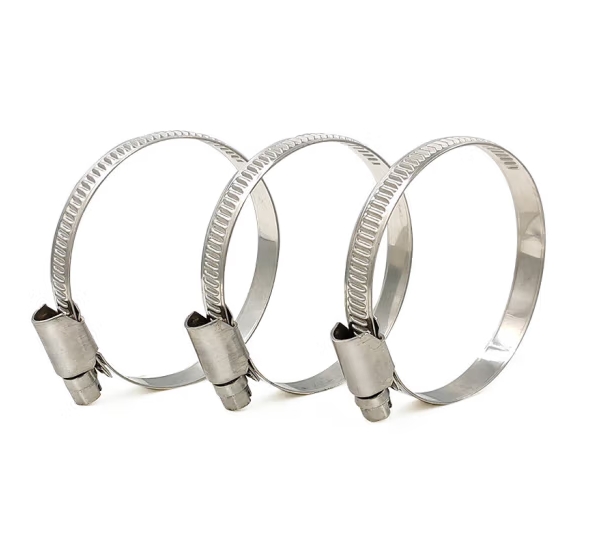

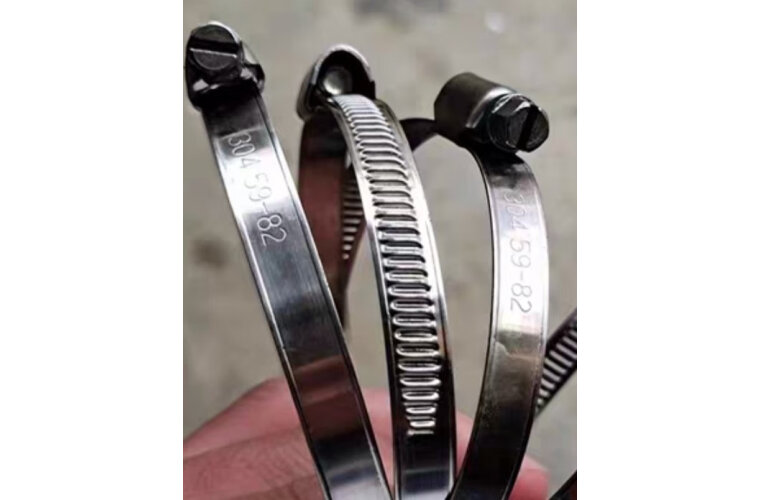

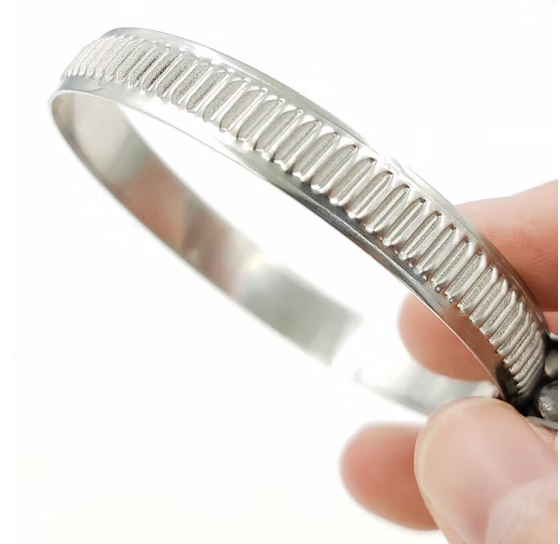

DIN 3017 German Middle Type Worm Drive Hose Clamp with 9mm &12mm Band

Goods Descriptions: DIN3017 German Middle Type Hose Clamp with 9mm & 12mm Band

Standard: DIN3017

Band width: 9mm /12mm

Material: Steel / Stainless Steel

Band Thickness: 0.6mm (0.024”)

  • DIN 3017 German Middle Type Worm Drive Hose Clamp with 9mm &12mm Band



    DIN 3017 Middle Type Worm Drive Hose Clamps  are multi-range hose clamps that uses a worm gear to generate an evenly distributed clamping force on the object on which it is tightened. The slotted drive of the screw driving the worm gear allows for easy tightening or loosening of the clamp. Tianjin Hardware offers one of the most complete ranges of metric hose clamps and other inch and metric industrial fasteners for immediate delivery from stock.



    German Type Hose Clamps is widelyusedin automobiles, tractors, forklifts, locomotives, ships,mines, petroleum, chemicals, pharmaceuticals,agriculture,and other water,oil,steam, dust,etc.The hose clamp is tightly locked,tight and has a wide adjustment range.It is suitable for fasteners with soft and hard pipe connections



    Specifications for DIN 3017 German Middle Type Worm Drive Hose Clamp with 9mm &12mm Band



    in mm in inch in mm in inch
    8-12 5/16" - 1/2" 70-90 2 3/4" - 3 1/2"
    10-16 3/8" - 5/8" 80-100 3 1/8" - 4"
    12-20 1/2" - 3/4" 90-110 3 1/2" - 4 3/8"
    12-22 1/2" - 7/8" 100-120 4" - 4 3/4"
    16-25 5/18" - 1" 110-130 4 3/8" - 5 1/8"
    16-27 1" - 15/8" 120-140 4 3/4" - 5 1/2"
    20-32 3/4" - 1 1/4" 130-150 5 1/8" - 5 7/8"
    23-35 7/8" - 13/8" 140-160 5 1/2" - 6 1/4"
    25-40 5/16" - 11/16" 150-170 5.91"- 6.69"
    30-45 1 3/16" - 1 3/4" 160-180 6.30" - 7.09"
    32-50 1 1/4" - 2" 170-190 6.69" - 7.48"
    40-60 1 5/8" - 2 3/8" 180-200 7.09" - 7.87"
    50-70 2" - 2 3/4" 190-210 7.48" - 8.27"
    60-80 2 3/8" - 3 1/8" 200-220 7.87" - 8.66"



    Instruction:

    • W1 - All parts carbon steel with zinc plated
    • W2 - Hosing and screw carbon steel, band SS201/SS301/SS304/SS316
    • W4 - All parts stainless steel 201/301/304
    • W5 - All parts stainless steel SS316



    DIN 3017 German Middle Type Worm Drive Hose Clamp with 9mm Band Mechanical Properties

      Nm
    FREE TORQUE    		 Nm
    BREAKING TORQUE

    9mm/W1

    ≤ 0.8Nm

    ≥ 5.5Nm

    9mm/W2

    ≤ 0.6Nm

    ≥ 6Nm

    9mm/W4

    ≤ 0.6Nm

    ≥ 6Nm

    9mm/W5

    ≤ 0.6Nm

    ≥ 6Nm



    DIN 3017 German Middle Type Worm Drive Hose Clamp with 12mm Band Mechanical Properties

      Nm
    FREE  TORQUE    		 Nm
    BREAKING TORQUE

    12mm/W1

    ≤ 0.8Nm

    ≥ 6Nm

    12mm/W2

    ≤ 0.6Nm

    ≥ 7Nm

    12mm/W4

    ≤ 06Nm

    ≥ 7Nm

    12mm/W5

    ≤ 0.6Nm

    ≥ 7Nm
