Shackle
Stainless Steel Shackle
-

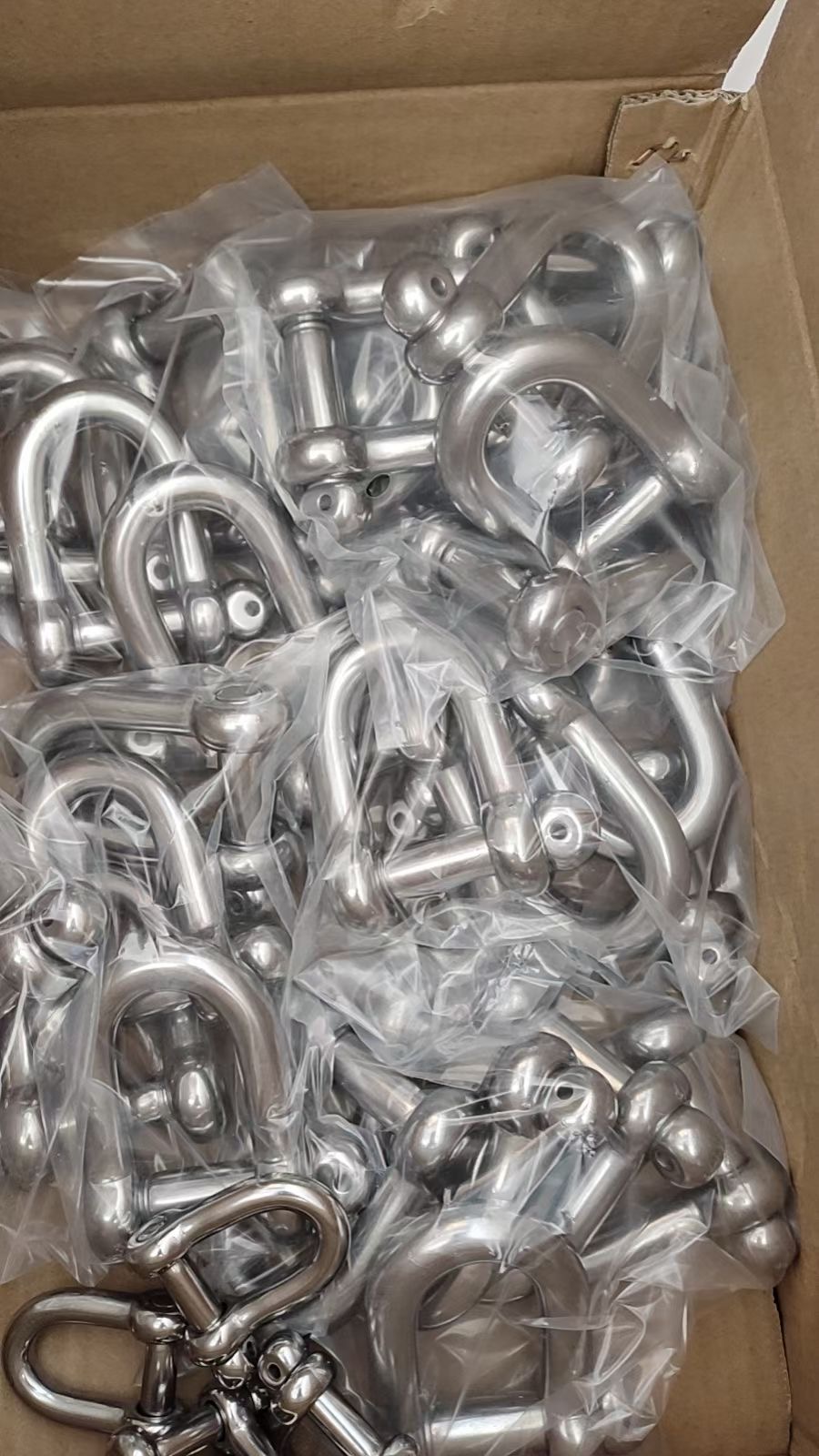

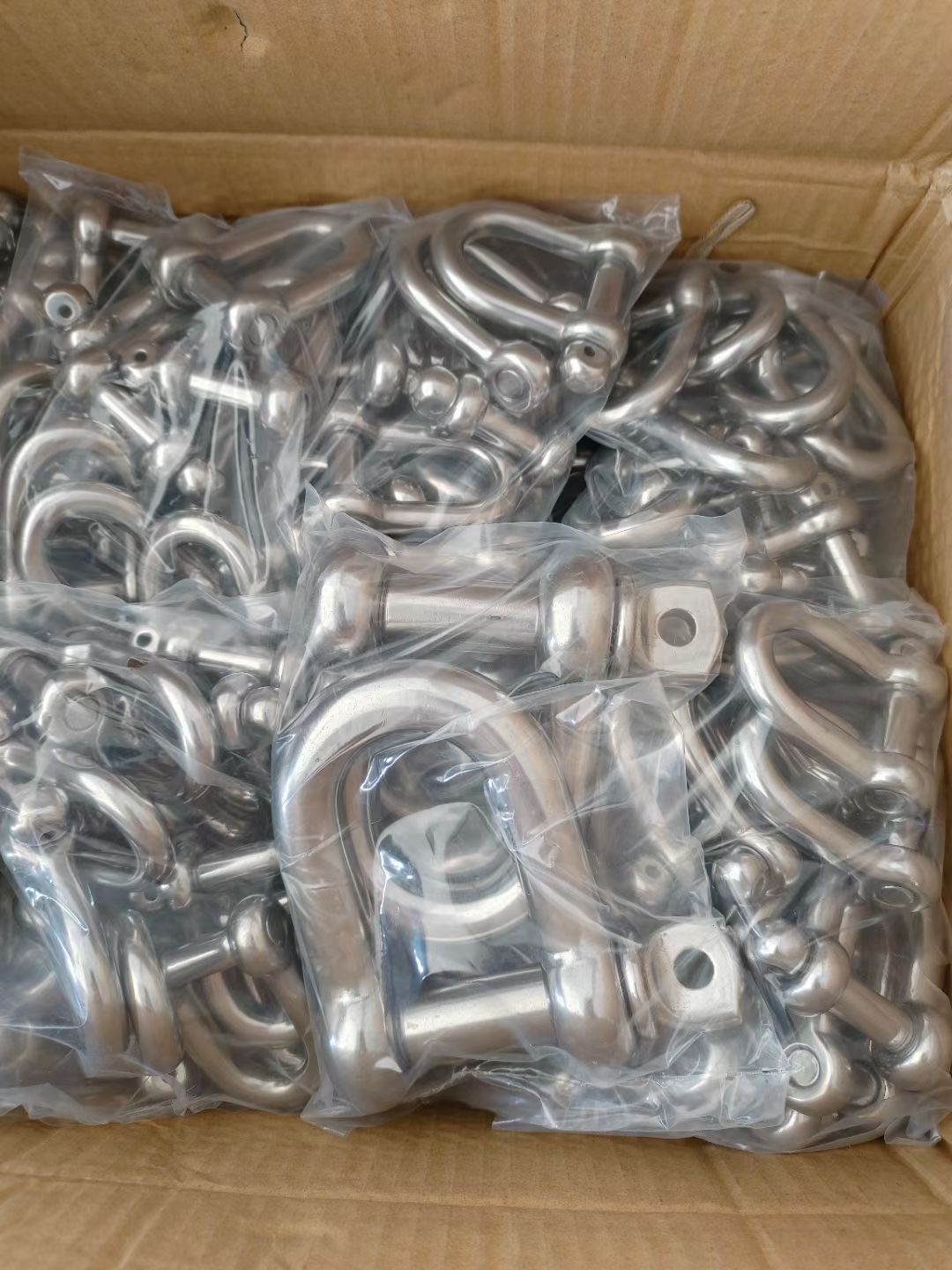

European D Shackle

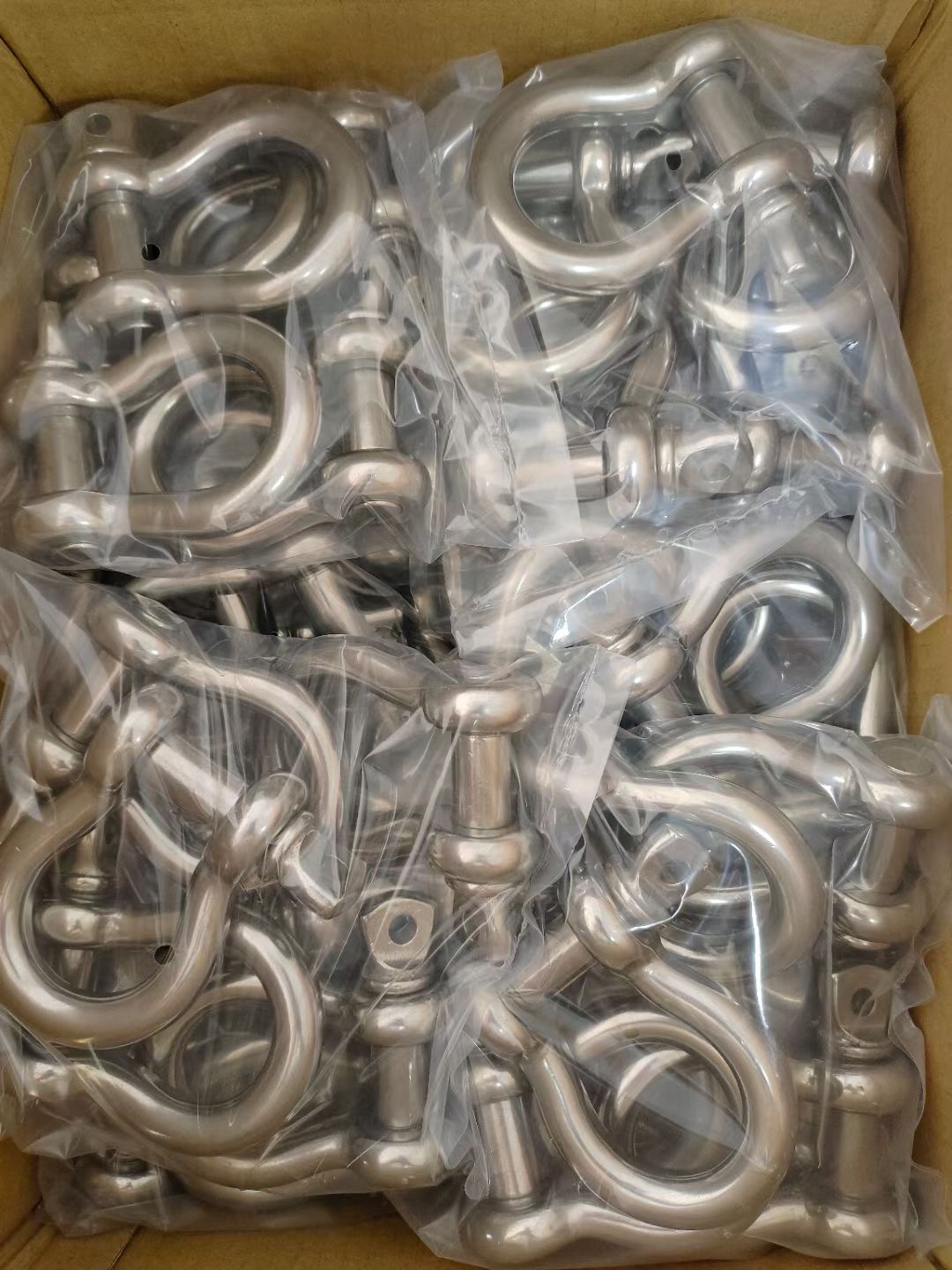

SIZE D A B C D1 mm mm mm mm mm mm 4 4 16 8 8 4 5 5 20 10 10 5 6 6 24 12 12 6 8 8 32 16 16 8 9 9 36 18 18 10 10 10 40 20 20 10 12 12 48 24 24 12 14 14 56 28 28 14 16 16 64 32 32 16 18 18 72 36 36 18 19 19 76 38 38 20 20 20 80 40 40 20 22 22 88 44 44 22 25 25 100 50 50 24 28 28 112 56 56 27 30 30 120 60 60 30 32 32 128 64 64 33 38 38 152 76 76 36 European Bow Shackle
Size D A B C D1 F mm mm mm mm mm mm 4 4 16 8 8 4 12 5 5 20 10 10 5 15 6 6 241 12 12 6 18 8 8 32 16 16 8 24 9 9 36 18 18 10 27 10 10 40 20 20 10 30 12 12 48 24 24 12 36 14 141 56 28 28 14 42 16 16 64 32 32 16 48 18 18 72 36 36 18 54 19 19 76 38 38 20 57 20 20 80 40 40 20 60 22 22 88 44 44 22 66 25 25 100 50 50 24 75 28 28 112 56 56 27 84 30 30 120 60 60 30 90 32 32 128 64 64 33 96 38 38 152 76 76 36 114 US Type D Shackle
SIZE D A B C D1 inch mm mm mm mm mm 3/16 5 18 9.6 11.5 6 1/4 6 22.5 12 15.5 8 5/16 8 26 13.5 19 10 3/8 10 32 16.8 23 12 7/16 11 36.5 19 26 12.7 1/2 12 41.5 20.5 28 14 5/8 16 51 27 36 18 3/4 19 60 32 46 22 7/8 22 71 35.5 53 25 1 25 81 43 61 28 1-1/8 28 92 46 68 32 1-1/4 32 101 52 76 35 1-1/2 38 124 61 90 42 US Type Bow Shackle

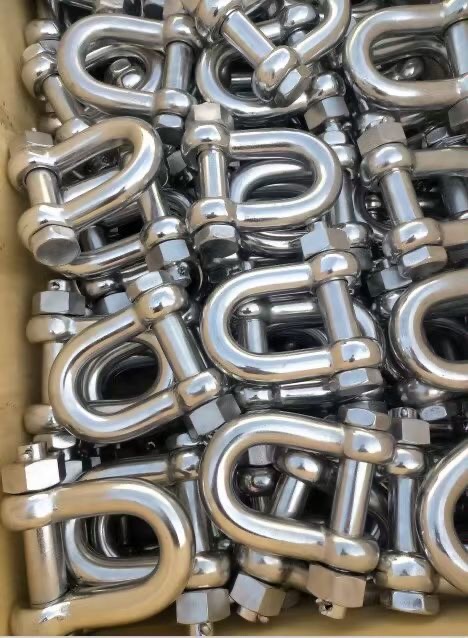

SIZE D A B C D1 F inch mm mm mm mm mm mm 3/16 5 22.5 9.6 11.5 6 15.3 1/4 6 28.5 12 15.5 8 19.8 5/16 8 31 13.5 19 10 21.5 3/8 10 36.5 16.8 23 12 26.2 7/16 11 43 19 26 12.7 29.5 1/2 12 48 20.5 28 14 33 9/16 14 54 24 32 16 38 5/8 16 60 27 36 18 43 3/4 19 71.5 32 46 22 51 7/8 22 84 36.5 53 25 58 1 25 95 43 61 28 68 1-/1/8 28 108 46 68 32 73 1-1/4 32 119 52 76 35 82 1-1/2 38 146 611 90 42 98 US Safety Bolt D Shackle
SIZE D D1 A B inch mm mm mm mm 3/16 5 6 18 9.6 1/4 6 8 22.5 12 5/16 8 10 26 13.5 3/8 10 12 32 16.8 7/16 11 12.7 36.5 19 1/2 12 14 41.5 20.5 1/2 12.7 16 41.5 20.5 9/16 14 16 46 24 5/8 161 181 51 27 5/8 161 19 51 27 3/4 19 22 60 32 7/8 22 25 71 36.5 1" 25 28 81 43 1-1/8 28 32 92 46 1-1/4 32 35 101 52 1-1/2 38 42 124 61

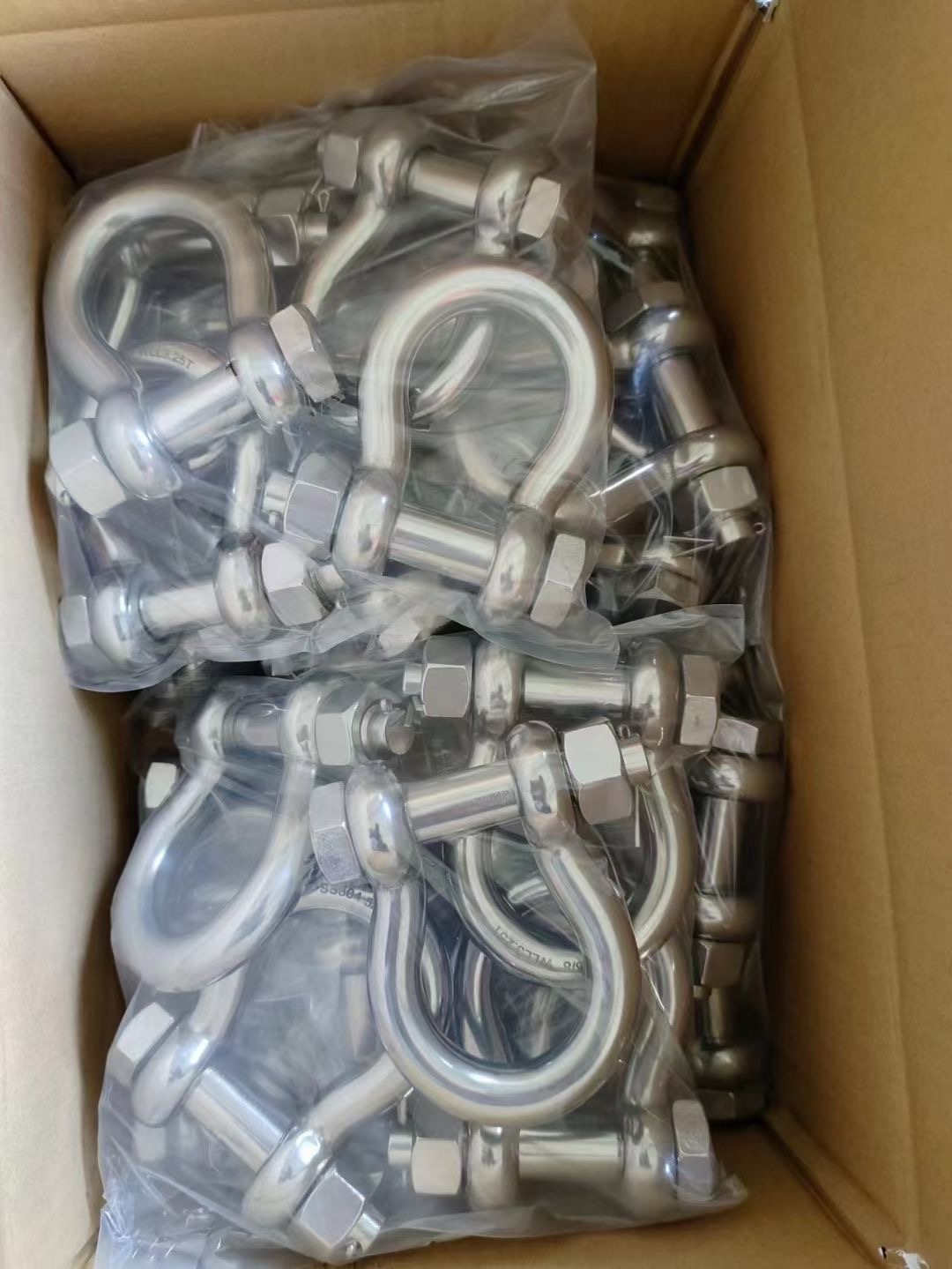

US Safety Bolt Bow Shackle

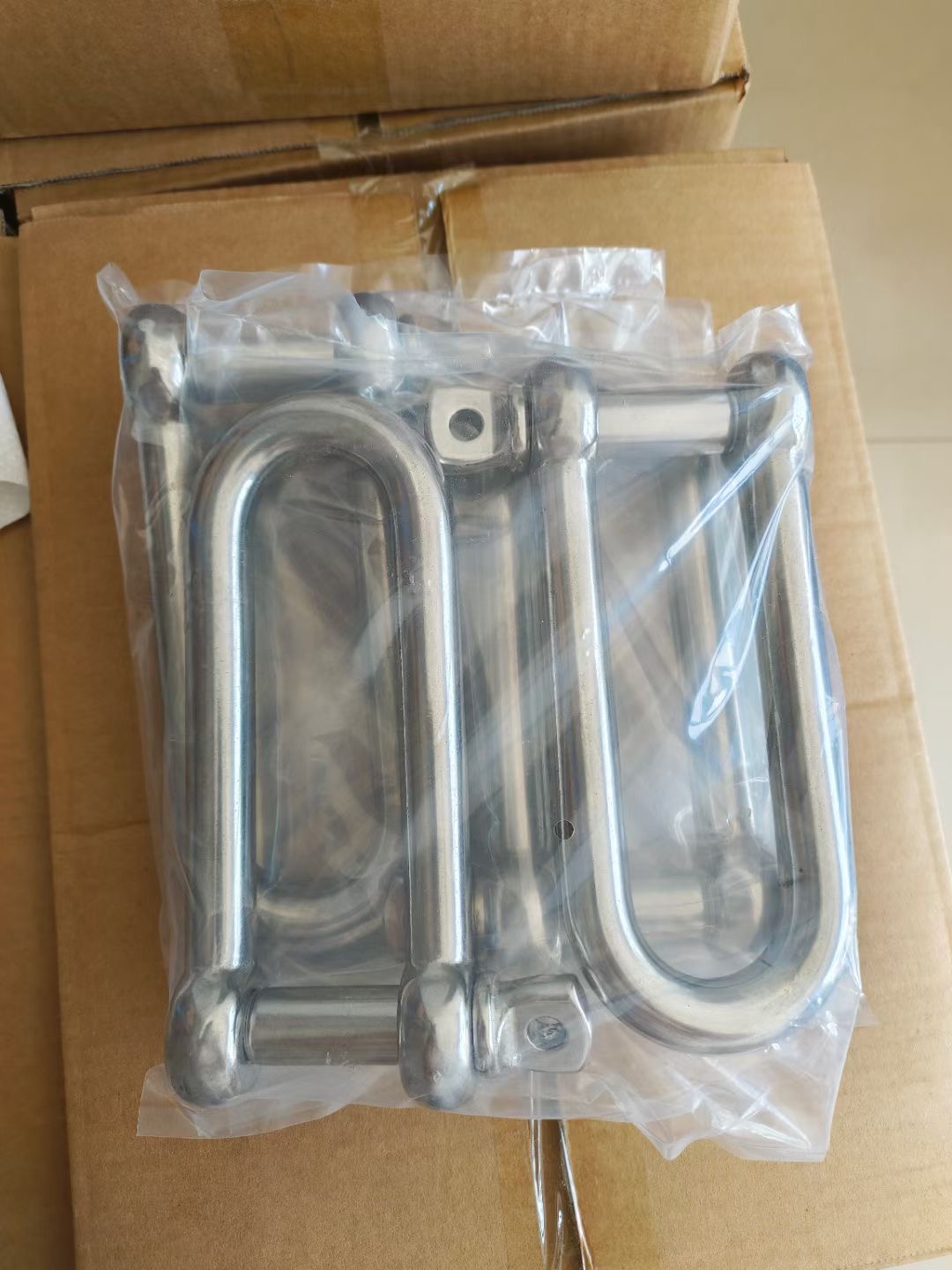

SIZE D DI A B F inch mm mm mm mm mm 3/16 5 6 22.5 9.6 15.3 1/4 6 8 28.5 12 19.8 5/16 8 10 31 13.5 21.5 3/8 10 12 36.5 16.8 26.2 7/16 11 12.7 43 19 29.5 1/2 12 14 48 20.5 33 1/2 12.7 16 48 20.5 33 9/16 14 16 54 24 38 5/8 16 18 60 27 43 5/8 16 19 60 27 43 3/4 19 22 71.5 32 51 7/8 22 25 84 36.5 58 1” 25 28 95 43 68 1-1/8 28 32 108 46 73 1-1/4 32 35 119 52 82 1-1/2 38 42 146 61 98 Long D Shackle
SIZE D A B C D1 mm mm mm mm mm mm 4 4 30 8 8 4 5 5 37.5 10 10 5 6 6 45 12 12 6 8 8 60 16 16 8 10 10 75 20 20 10 12 12 90 24 24 12 14 14 105 28 28 14 16 16 120 32 32 16 18 18 135 36 36 18 20 20 150 40 40 20 Wide D Shackle

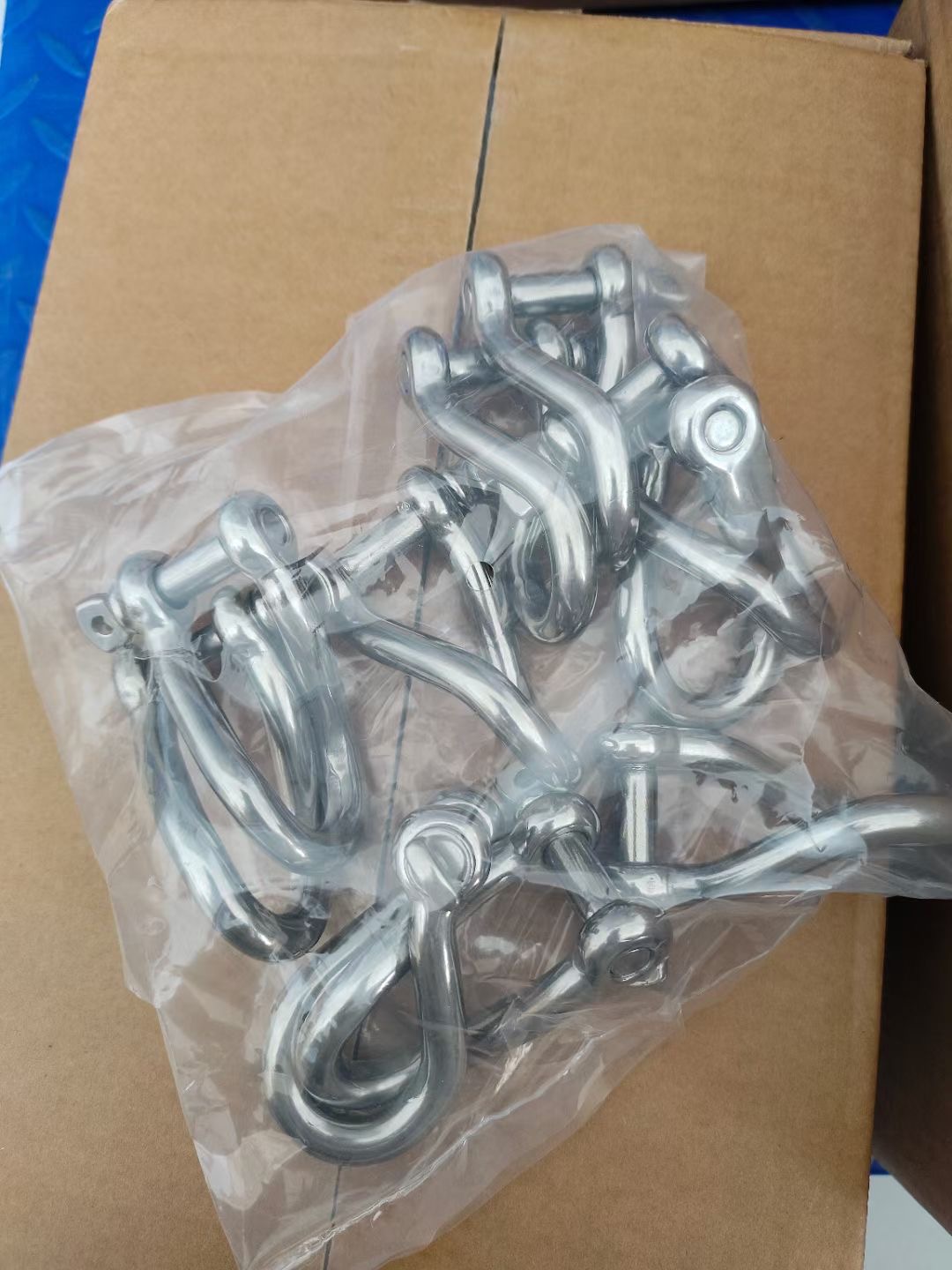

SIZE D A B D1 mm mm mm mm mm 5 5 20 30 5 6 6 24 36 6 8 8 32 48 8 10 10 40 60 10 12 12 48 72 12 Twisted Shackle
SIZE D A B C D1 mm mm mm mm mm mm 4 4 23 8 8 4 5 5 28 10 10 5 6 6 33 12 12 6 8 8 44 16 16 8 10 10 55 20 20 10 12 12 66 24 24 12 Fixed Snap Shackle

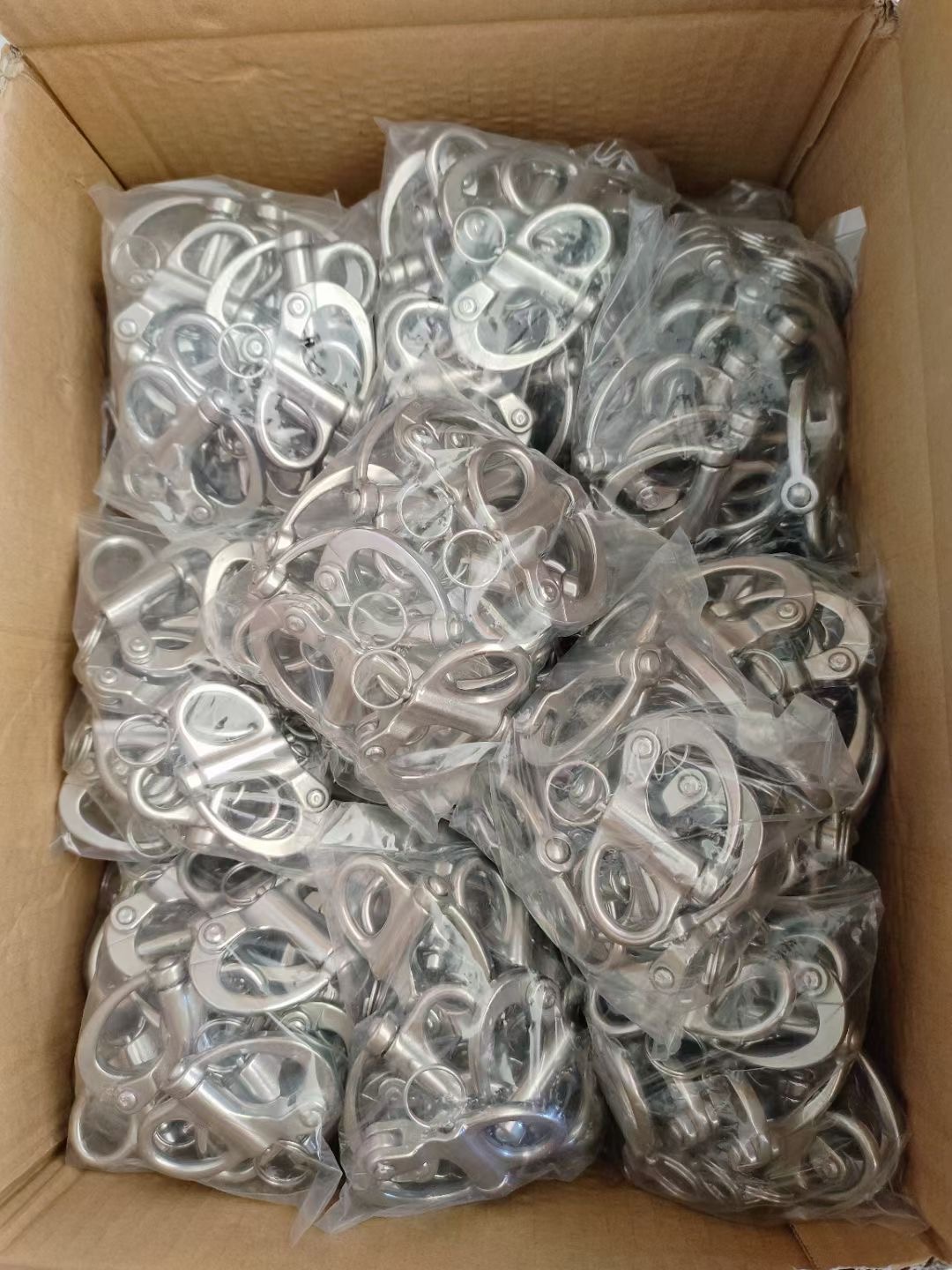

SIZE A B C WLL(kg) WT(kg) 35MM 12.5 7.5 35.0 100.0 0.013 52MM 18.0 11.0 52.0 450.0 0.043 89MM 20.0 15.0 70.0 650.0 0.082 96MM 27.0 18.5 96.0 950.0 0.212 Swivel Snap Shackle With Eye End
SIZE A B C WLL(kg) WT(kg) 70MM 18.0 12.5 71.0 450.0 0.061 87MM 20.0 16.5 89.0 650.0 0.115 128MM 27.0 24.0 128.0 950.0 0.291 Swivel Snap Shackle With Jaw End
SIZE A B C WLL(kg) WT(kg) 70MM 18.0 10.0 70.0 450.0 0.067 87MM 20.0 12.5 91.0 650.0 0.138 128MM 27.0 21.0 128.0 950.0 0.342 Snap Shackle With Webbing Swivel
SIZE A B C D WLL(kg) WT(kg) 25*77 18.0 25.0 77.0 18.0 450.0 0.082 Swivel Snap Shackle With Round Ring
SIZE A B C WLL(kg) WT(kg) 20*65 14.0 21.0 65.0 270.0 0.041 25*76 15.0 26.0 76.0 340.0 0.071
Hayard Shackle with Crossbar & Lock Pin
Size A B D G WT mm mm mm mm D mm kg 5 37 13 5 5.9 0.035 6 48 16 6 5.9 0.047 8 60.5 21.5 8 7.9 0,115 Hayard Shackle with Lock Pin
Size A B D WT mm mm mm mm kg 5 37 13 5 0.033 6 48 16 6 0.045 8 60.5 21.5 8 0.11 Sheet Snap Shackle
Size A B L WT mm mm mm mm kg 52 15.5 11 52 0.045 65 17 13 65 0.095 96 18 256 96 -
