DIN1480 Turnbuckle
Tianjin Hardware DIN1480 Turnbuckle is made from 304 and 316 material with casting precision and forging tech.DIN1480 turnbuckle includes hook and hook turnbuckle, hook and eye turnbuckle, eye and eye turnbuckle.
-

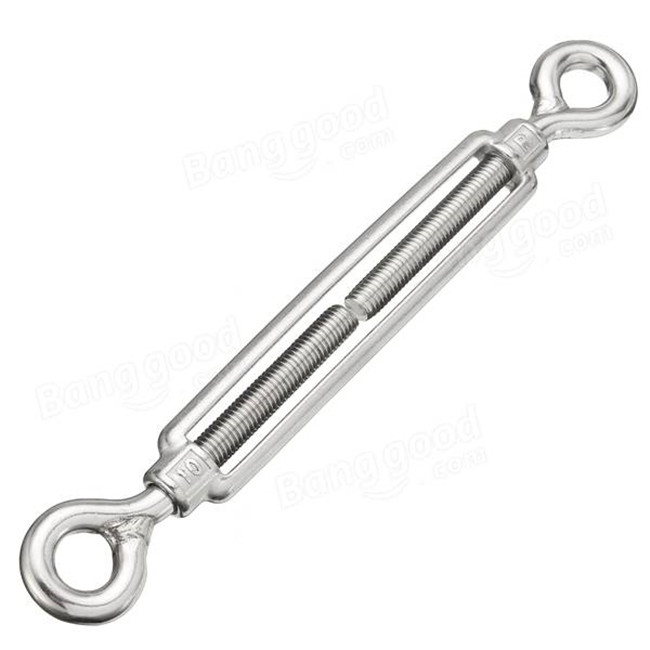

DIN1480 Turnbuckle with Eye & Eye Size(mm) L（mm） L1(mm) M(thread) WLL(kg) 5 90 50 M5 50 6 172 110 M6 80 8 182 110 M8 160 10 213 125 M10 250 12 238 125 M12 400 16 320 170 M16 800 20 367 200 M20 1200

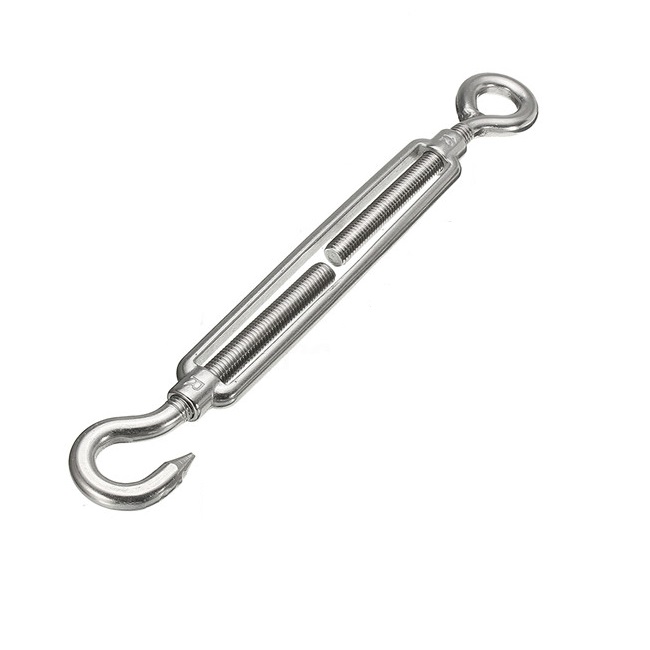

DIN1480 Turnbuckle with Hook & Eye Size L(mm) L1(mm) D(mm) S(mm) WLL(kg) M5 90 140 8 7 40 M6 110 170 10 9 80 M8 110 180 12 10 140 M10 125 210 14 11 220 M12 125 240 18 14 300 M16 170 320 22 18 600 M20 200 370 25 20 900
DIN1480 Turnbuckle with Hook & Hook Size L(mm) L1(mm) D(mm) S(mm) WLL(kg) M5 90 140 8 7 40 M6 110 170 10 9 80 M8 110 180 12 10 140 M10 125 210 14 11 220 M12 125 240 18 14 300 M16 170 320 22 18 600 M20 200 370 25 20 900 -
