Stainless Steel Glass railing fittings
-
Stainless glass railing fittings are made of high quality stainless steel grade 304 or grade 316, corrosion resistance, durable in use. For interior applications we suggest grade 304 stainless steel and satin polish treatment. As for exterior applications, we suggest grade 316 stainless steel and mirror polish treatment.
When choosing stainless steel glass railing fittings, it is important to consider the following factors:
- The type of glass being used
- The size and weight of the glass panels
- The desired level of security
- The budget
Here are some of the benefits of using stainless steel glass railing fittings:
- They are corrosion-resistant and can withstand the elements.
- They are strong and durable.
- They are easy to clean and maintain.
- They offer a modern and contemporary look.

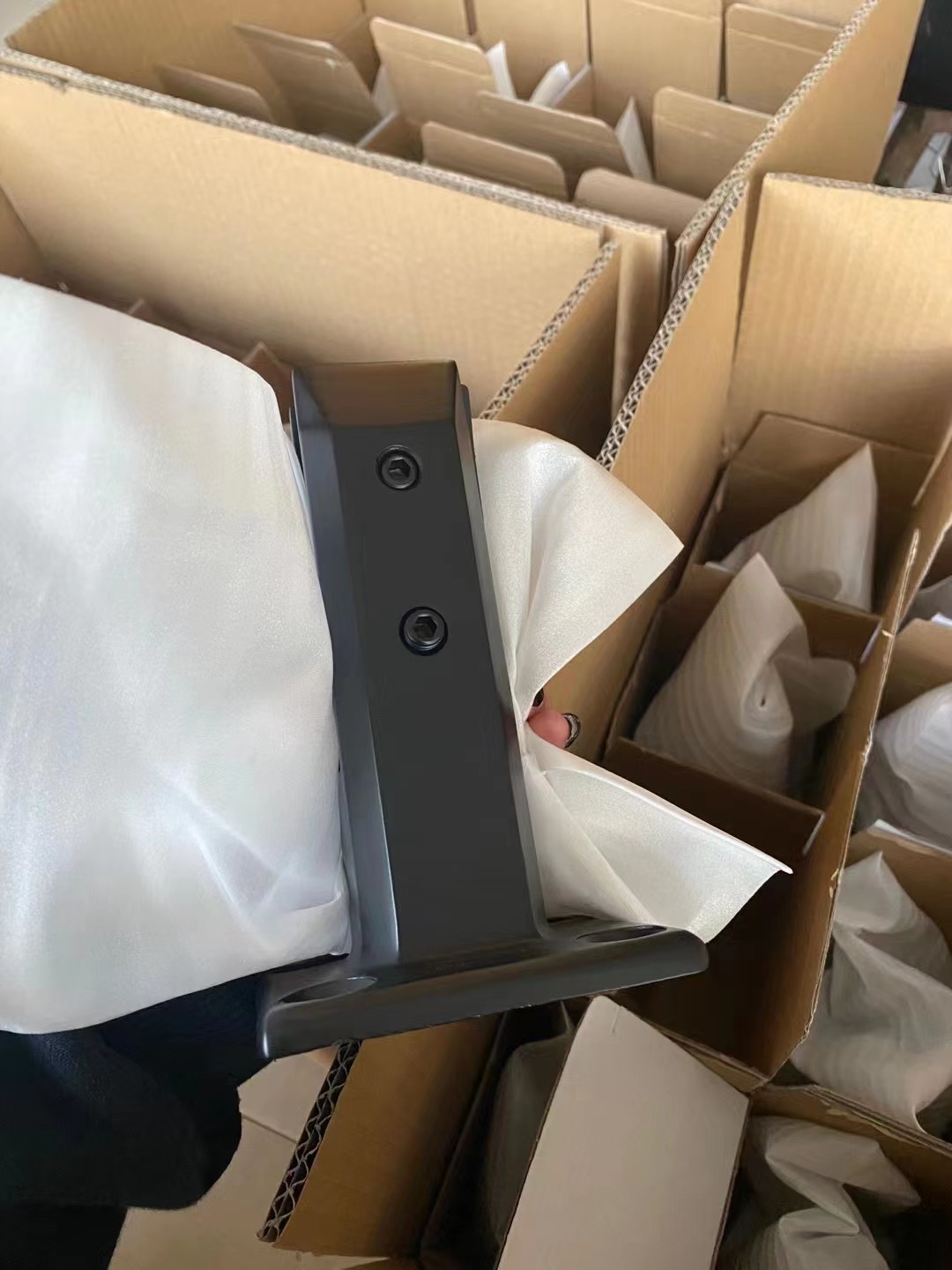

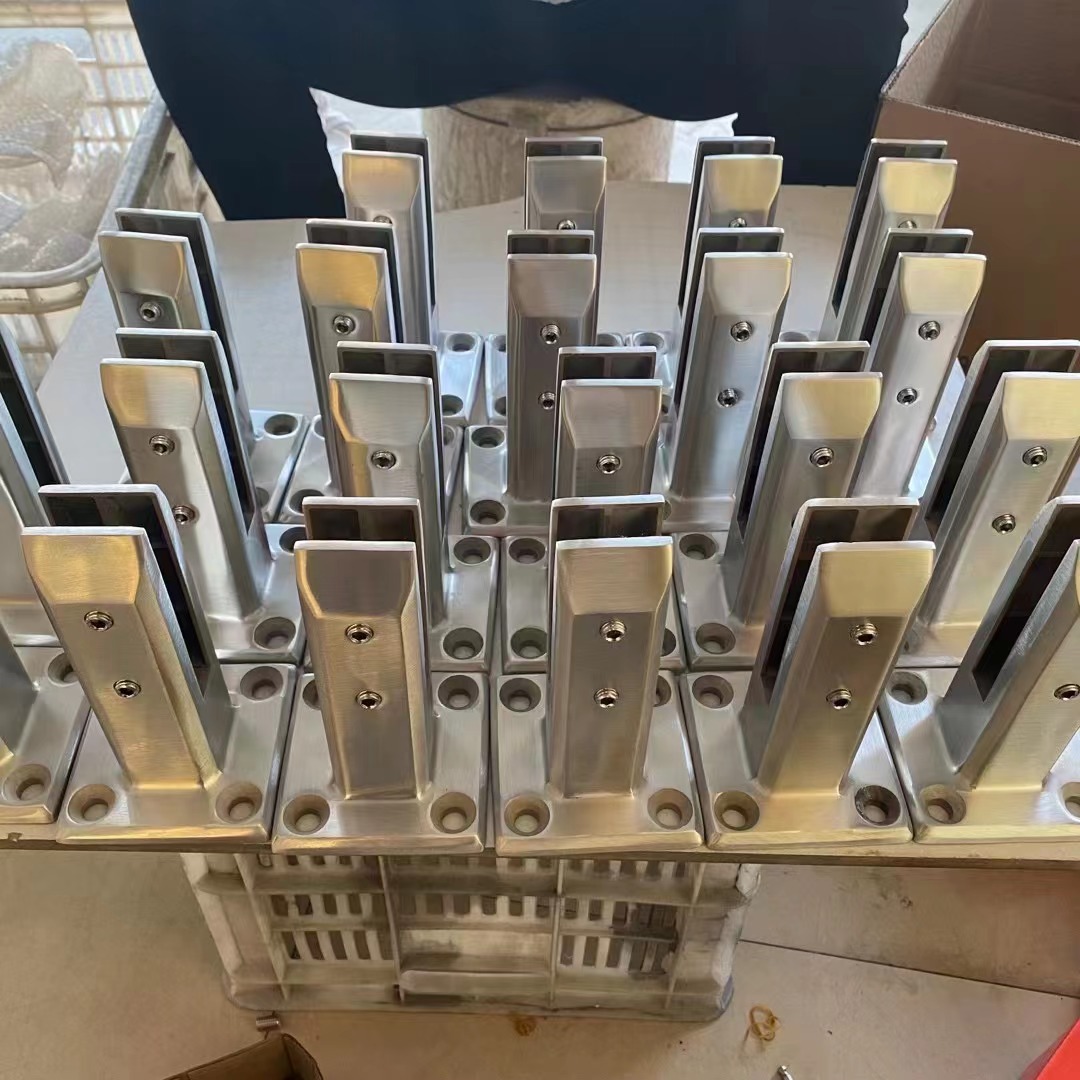

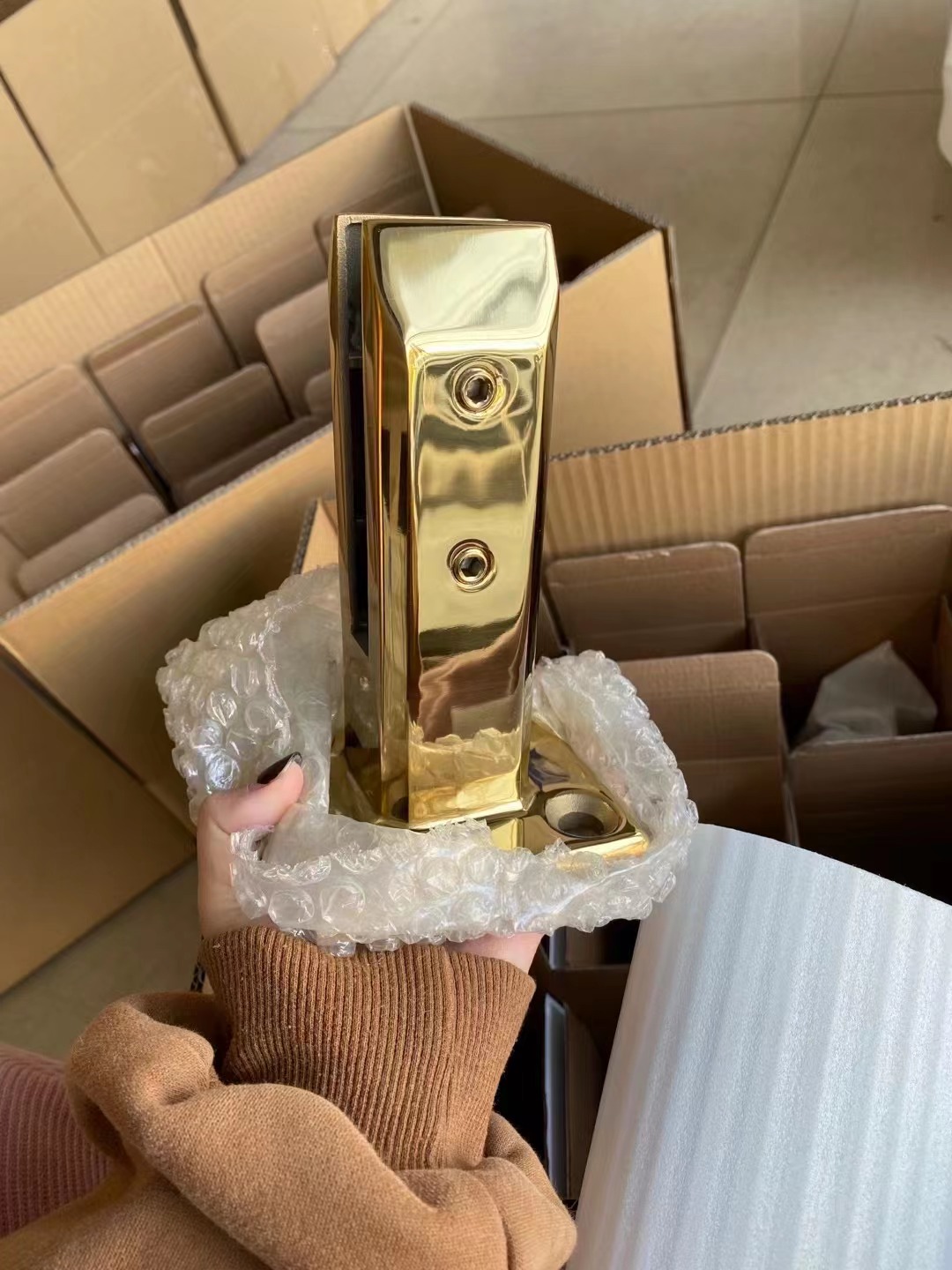

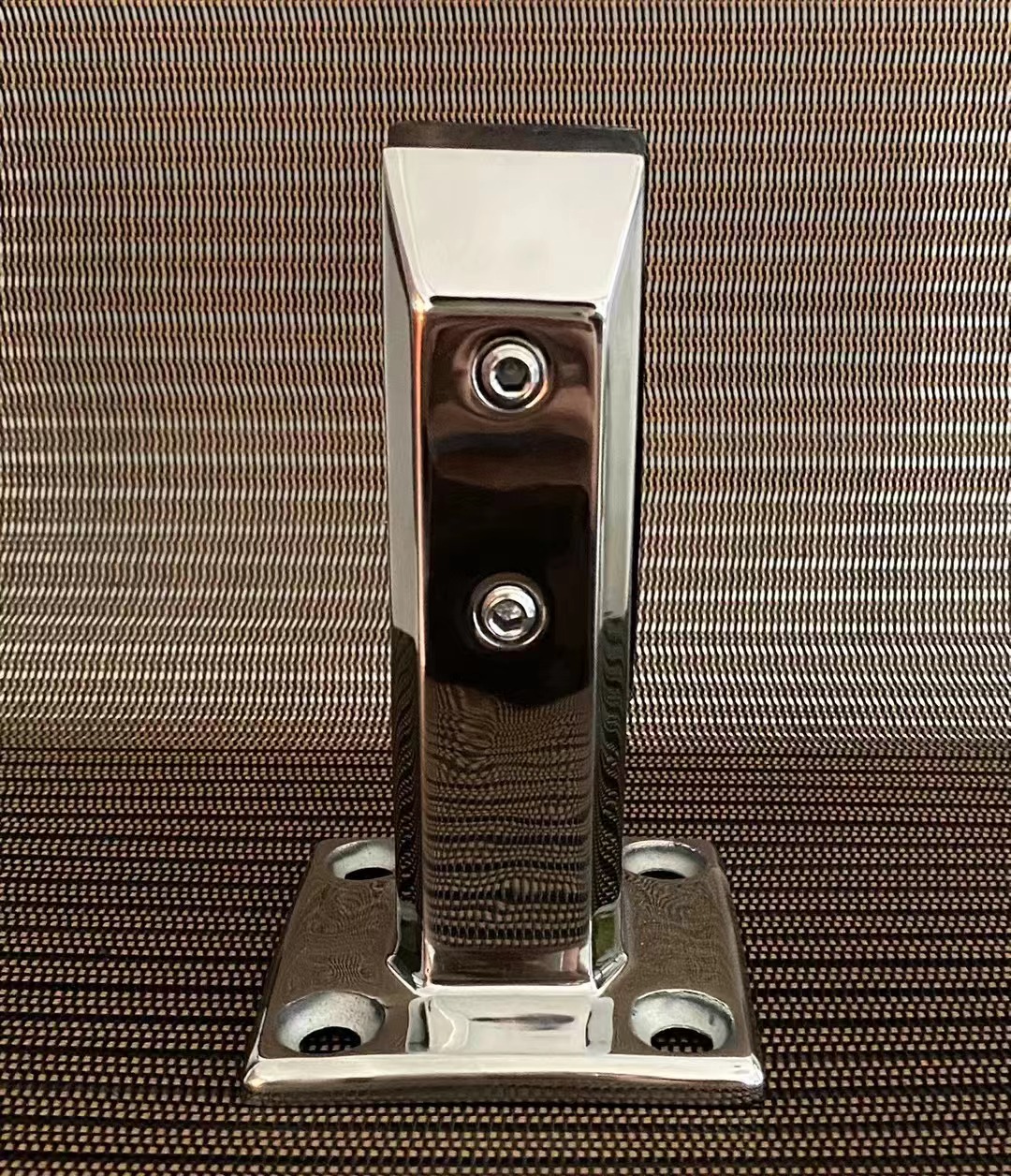

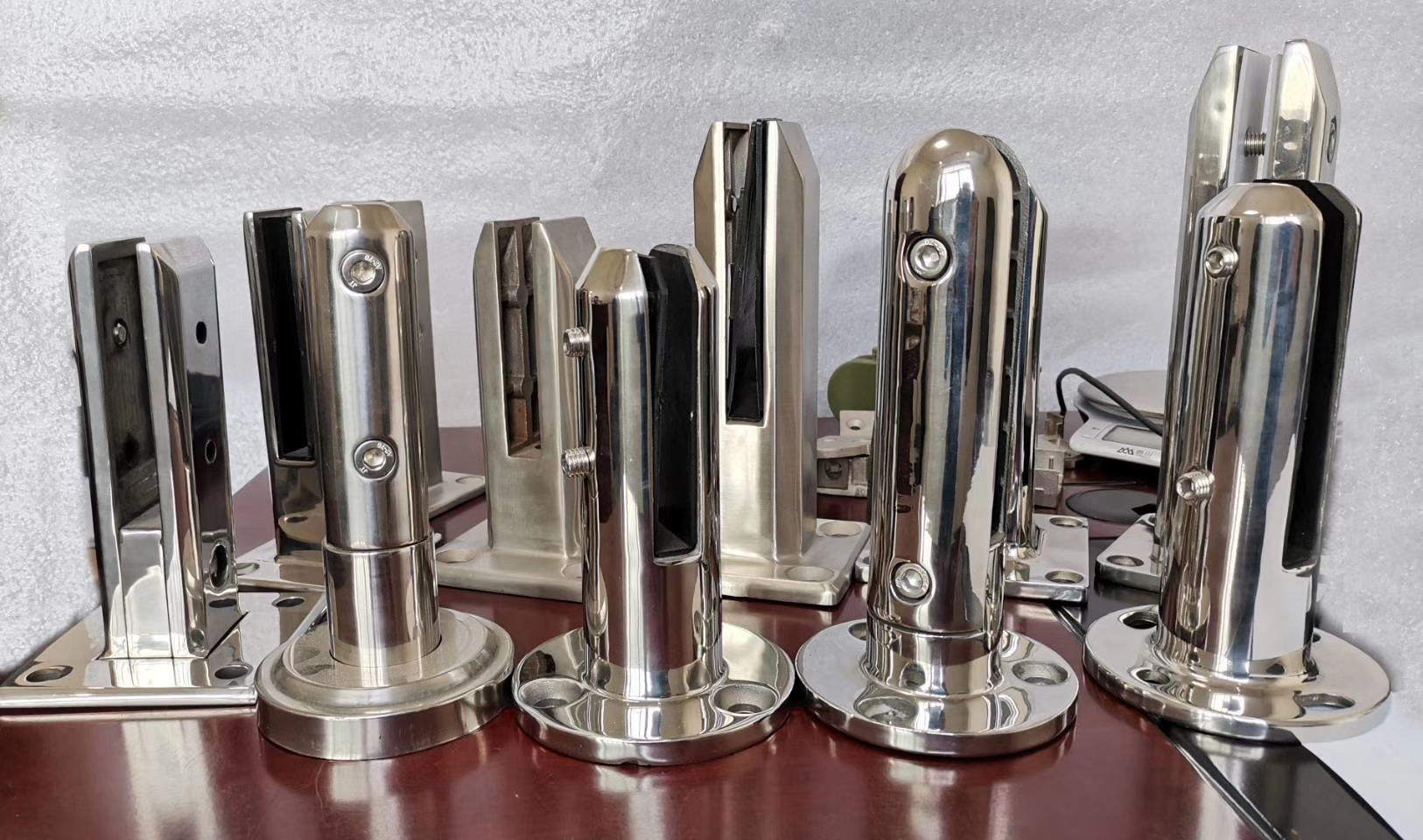

1.Glass Fencing Spigots（for 8-16mm glass）
Stainless steel glass fencing spigots are specialized components used in the construction of glass fences. They are made from stainless steel, a material known for its durability and resistance to corrosion. Glass spigots are designed to securely hold glass panels in place, creating a barrier or enclosure.
2.Glass Clamps（for 8-16mm glass）
Stainless steel glass clamps are available for glass railing systems, partitions, staircases, and more. They designed to securely attach glass panels to various surfaces, such as walls, posts, and floors, while providing a sleek and modern aesthetic. This range comes in a variety of style and option, glass clamps can be D type or square type according to your design. Stainless steel glass clamps can have a flat back or radius back, depending on the mounting surface they are being fixed, to fit different glass thicknesses and aesthetics.Our Stainless Steel Glass Clamps for 30.8mm, 42.4mm, 50.8mm tubes and 8-16mm glass.Additionally, they are available in exterior and interior applications
Item NO.
L
H
T
∅
BJ-21-52-0
52
45
25
0
BJ-21-52-38
52
45
25
38.1
BJ-21-52-424
52
45
25
42.4
BJ-21-52-508
52
45
25
50.8
BJ-21-63-0
63
45
27
0
BJ-21-63-381
63
45
27
38.1
BJ-21-63-424
63
45
27
42.4
BJ-21-63-508
63
45
27
50.8
Item NO. L H T ∅ BJ-22-66-0 66 46 29 0 BJ-22-66-381 66 46 29 38.1 BJ-22-66-424 66 46 29 42.4 BJ-22-66-508 66 46 29 51
Item NO. L H T ∅ BJ-23-66-0 66 45 30 0 BJ-23-66-424 66 45 30 42.4 BJ-23-66-508 66 45 30 50.8 BJ-23-66-762 66 45 30 762
Item NO. L H T ∅ BJ-33-67-424 67 45 28 42.4
Item NO. L H T ∅ BJ-34-0 45 45 25 0 BJ-34-381 45 45 25 38.1 BJ-34-508 45 45 25 50.8
Item NO. L H T ∅ BJ-58-64-0 64 48 30 0 BJ-58-70-424 70 48 30 42.4
Item No. ∅ BJ-63-424 42.4 Item No. BJ-66-10040
-
